A skip of 10 tonne capacity hoists ore through a 1000 m deep shaft at a speed of 20 m/s. The skip accelerates and decelerates at 2.0 m/s². The loading and unloading times for the skip are 2.5 min and 1.5 min, respectively. The maximum hourly capacity of the hoisting system, in tonnes, is ______.
From an openpit sump, mine water is lifted using a 250 m long straight pipeline laid along a gradient of 34°. The pumping rate is 500 gpm (1 gallon = 3.8 litres). Additional head loss due to pipe friction can be considered to be 10% of head lifted. At an overall efficiency of 70%, the electric power consumed by the pump, in kW, is __________.
A mill concentrate, having 25% copper, is proposed to be sold at Rs. 1,25,000 per tonne. The grade of the deposit is 0.8% Cu and the overall cost of mining and milling is Rs. 2,520 per tonne of ore. At a recovery of 75%, the estimated profit, in Rs./tonne of concentrate, is ______.
A surface mine has 15 identical dumpers and two shovels. For shovel 1, the dumper cycle time is 30 min and the shovel loading time is 5 min. For shovel 2, the dumper cycle time is 32 min and the shovel loading time is 4.0 min. Based on match factor optimisation (equitable match factor), the ideal allocation of dumpers to shovel 1 and shovel 2, respectively is
A ladder placed against a frictionless wall at an inclination of with horizontal, is in a state of limiting equilibrium. The ladder has a length of 13 m and a uniform mass of 4 kg/m. The coefficient of friction between the ladder and the floor is ______

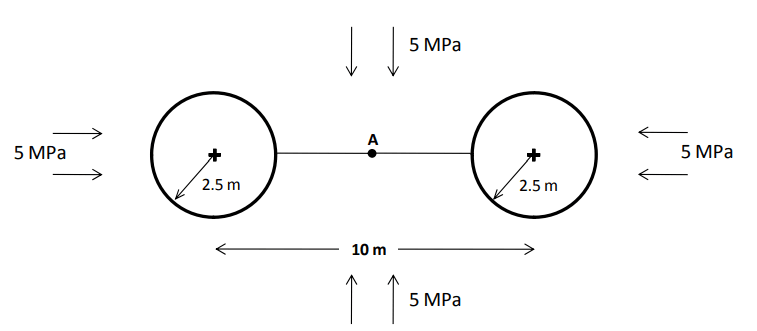

In a hydrostatic stress field, point A is in the middle of two circular openings as shown in the figure. The radial stress, in MPa, at point A is ______.

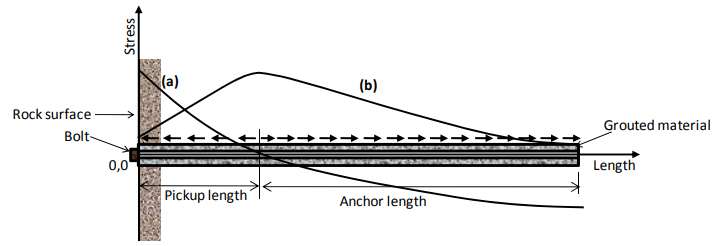

Curves (a) and (b) represent the stress distributions along the length of a 'full column grouted bolt' shown in the figure. Curves (a) and (b) are
Match the following:
| Haulage Unit | Safety Device |
|---|---|
| P. Friction Winder | 1. Run-away Switch |
| Q. Drum Winder | 2. Lilly Controller |
| R. Direct Rope Haulage | 3. Regenerative Braking |
| S. Endless Rope Haulage | 4. Monkey/Back Catch |

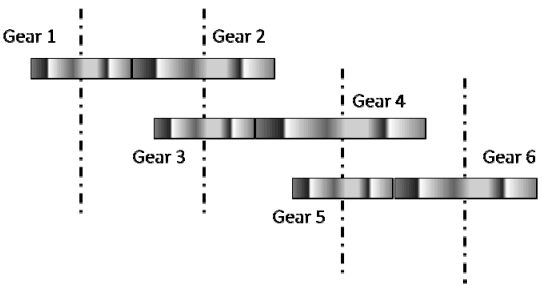

In the gear assembly shown, the rpm of Gear 1 is 600. The number of teeth in Gear 1, Gear 2, Gear 3, Gear 4, Gear 5 and Gear 6 is 30, 45, 15, 20, 10 and 30, respectively. The rpm of Gear 6 is ______
Out of the support categories given for an underground coal mine, identify the ‘active support’.
